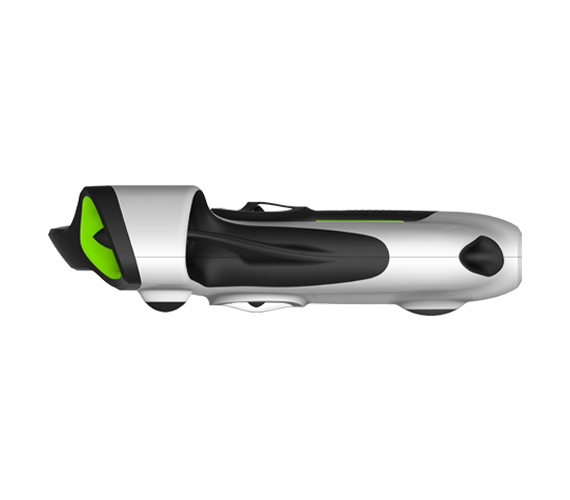

Youcan BW Space Underwater Drone
BW-Space allows anyone to capture amazing underwater photography with BW-Space's auto-adjust lighting, auto-piloting modes, and 4K camera. By integrating smarter and more autonomous technology with underwater robotics, Youcan Robot opens the door to nearly anyone to photograph, research, or explore the world's oceans or lakes. BW-Space is the first personal Unmanned Underwater Vehicle (UUV) kit with auto-piloting and auto-adjust lighting technologies that makes it simple for anyone to explore or capture amazing underwater photos and videos like the professionals. BW-Space's manual or autonomous piloting controls, automatic LED lighting adjustments, and superior power is designed to be affordable for both hobby and/or commercial uses.
Technical Specifications
MACHINE
Dimensions
52x49x14 cm / 20x15x5 in
Weight
4.2kg / 9.3lb
Waterproof Cover
Glass
Operating Temperature
0° -40°C / 32° -104°F
Max. Speed
1.5m/s 4KTS
Max. Rated Depth
100m / 328ft
Max. Flow Speed Resistance
1.5m/s 4KTS
CAMERA
Sensor
1/1.7” CMOS (sony imx226)
Effective Pixels
12MP
Aperture
4.45mm
Image Format
HPEG
Max. Video resolution
4K *3840x216 30fps)
Video Format
AVI
Min. Object Dimension
0.3m
Field Angle
D 130° H110.3° V56.8°
SD Card Storage
Max Capacity 128GB
BATTERY
Rated Capacity
6400mAhx2 / 69.12 Whx2
Battery Life (Normal Use)
3-4hrs
Battery Life (Light Use)
5-7hrs
Charging Time
5 hours
Input
DC 12V;3A ± 0.2A
THRUSTERS
Configuration
2 Horizontal 1 Vertical
Max. Forward Thrust
3.0kg
Max. Reverse Thrust
2.5kg
Max. Power
150W
TETHER
Optional Length
50 / 100/ 150m; 164/ 328/ 492ft
Outer Diameter
4.4mm 0.17in
Buoyancy
Neutral
Breaking Strength
150kg 330lb
Weight
0.9kg(50m) / 1.6kg (100m) 2.3kg (150m) 2.0lb (164ft) / 3.5lb (328ft) / 5.0lb (492ft)
REMOTE CONTROLLER
Support System
IOS / Android
Connection Mode
Bluetooth 2.0 SPP Protocol (Android)
Bluetooth 4.0 BLE Protocol (IOS)
Tensile Elongation
11.5-26.5cm
WIFI
Operating Frequency
2.4GHz
Max. Transmission Distance
100m 328ft
Related Capacity
2600mAh / 28.08Wh
3D ATTITUDE SYSTEM
YAW
Range -180° ~180° Resolution 1°
Pitch Range
Range -90° ~90° Resolution 1°
Roll
Range -90° ~90° Resolution 1°
Compass
Resolution 1°
LIGHTS
Lighting Intensity
0-1380lmx2(adjustable brightness)
Color
90-CRI White
CCT Range
6000-6500 K
ENVIRONMENTAL SYSTEM
Pressure/Depth Sensing
Range 0-100m, Accuracy ± 0.5m
Temperature Sensing
Range -20° -85°C, Accuracy ± 1 °C
YOCAN DIVE APP
IOS Version
Requires IOS 10.3 or later
Android Version
Android Version 44.0 or later
PC Version
Chrome, Firefox, Opera, Safari
