sE Electronics Z5600A II - Large Diaphragm Tube Condenser Microphone

sE Electronics Z5600A II - Large Diaphragm Tube Condenser Microphone

SKU: RG-C210919-ABS-MOQ1-MIC-54325
$3,452.00Price
Excluding Tax |
The Z5600a II large-diaphragm condenser is one of the most versatile tube mics in today's market. With 9 graded polar pattern steps through omni, cardioid and figure eight , -10dB pad and bass cut, the Z5600a II finds uses in a huge number of applications, from miking a live drum kit to overheads on a choir. Above all though, this excellent mic has won its praise on delivering superb vocal recordings, with natural warmth and incredible detail.



  • Technical Specifications

    Capsule Type:

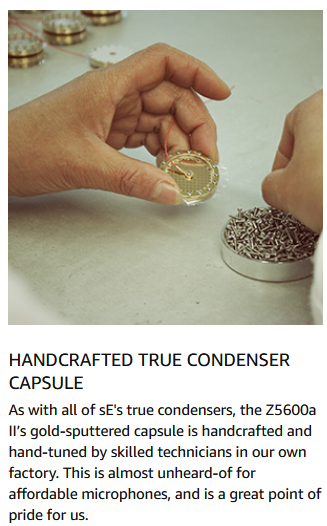

    Hand-Crafted True Condenser

    Diaphragm:

    35mm Twin Gold/Mylar

    Directional Pattern:

    Cardioid, Omni, Figure 8 and 5 intermediate stages (selectable on power supply)

    Frequency Range:

    20 Hz - 20 kHz

    Impedance:

    200 Ohms

    Sensitivity:

    25.12 mV/Pa (-32 dB)

    Max SPL:

    125/135 dB (0/-10 dB pad) (0.5% THD @ 1kHz)

    Signal to Noise Ratio:

    76 dB

    Self-Noise:

    18 dB(A)

    Pass Filter Switch:

    50 Hz

    Preattention Pad:

    -10 dB

    Power requirement:

    Dedicated PSU (included)

    Weight (mic):

    795g / 28.04oz

    Weight (PSU):

    1459g / 51.47oz

    Tube Complement:

    1x 12AX7/ECC83

    Connectors:

    8-pin army connector to mic, XLR from PSU

  • Package Content

    The Z5600a II comes in a wooden presentation case, cradled in a full aluminum flight case with a large shockmount and a brushed aluminum PSU with pattern switching and cables.
