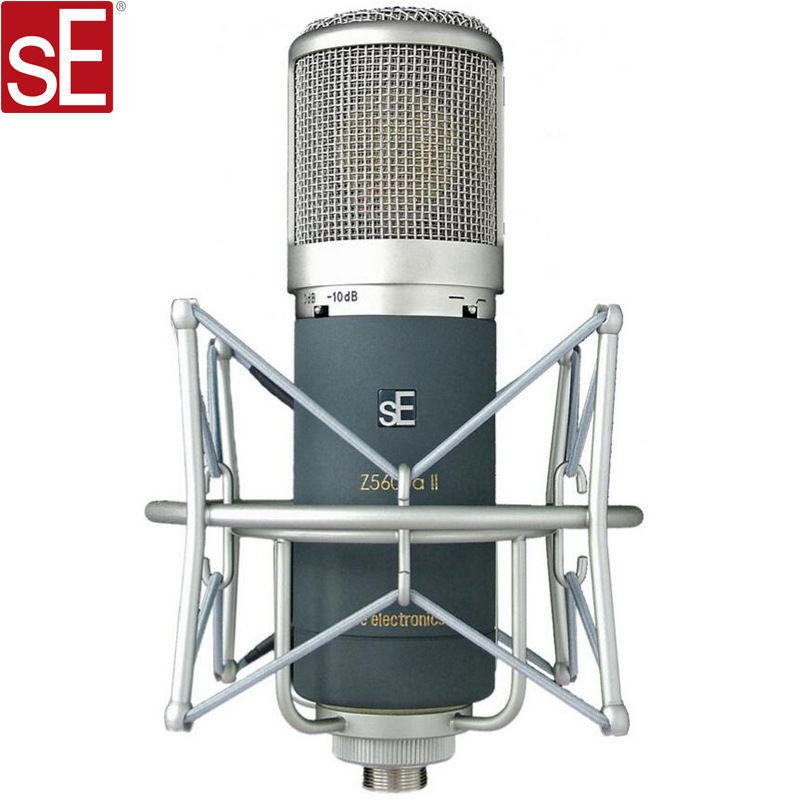

SE Electronics Z5600A II Professional Condenser Microphone
he Z5600a II large-diaphragm condenser is one of the most versatile tube mics in today's market. With 9 graded steps through omni, cardioid and figure eight patterns, -10dB pad and bass cut, the Z5600a II finds uses in a huge number of applications, from miking a live drum kit to overheads on a choir. Above all though, this excellent mic has won its praise on delivering superb vocal recordings, with natural warmth and incredible detail.
Technical Specifications
Specifications
Capsule Type:
Hand-Crafted True Condenser
Diaphragm:
35mm Twin Gold/Mylar
Directional Pattern:
Cardioid, Omni, Figure 8 and 5 intermediate stages (selectable on power supply)
Frequency range:
20 Hz - 20 kHz
Impedance:
200 Ohms
Sensitivity:
25.12 mV/Pa (-32 dB)
Max SPL:
127/137 dB (0/-10 dB pad) (0.5% THD @ 1kHz)
Signal to Noise Ratio:
81 dB
Self Noise:
13 dB(A)
Pass Filter Switch:
50 Hz
Preattenuation Pad:
-10 dB
Power requirement:
Dedicated PSU (included)
Weight (mic):
850g / 30oz
Weight (PSU):
1970g / 69.50oz
Tube complement:
1x 12AX7/ECC83
Connectors:
8-pin army connector to mic, XLR from PSU
