DJI Phantom 4 RTK
Upgrade your next mapping mission with the Phantom 4 RTK – the most compact and accurate low altitude mapping solution.
Capture the best image data with a 1-inch, 20-megapixel CMOS sensor. Mechanical shutter makes mapping missions or regular data capture seamless as the Phantom 4 RTK can move while taking pictures without the risk of rolling shutter blur. Due to the high resolution, the Phantom 4 RTK can achieve a ground sample distance (GSD) of 2.74 cm at 100 meters flight altitude.To ensure each Phantom 4 RTK offers unparalleled accuracy, every single camera lens goes through a rigorous calibration process, with parameters saved into each image’s metadata, letting post-processing software adjust uniquely for every user.

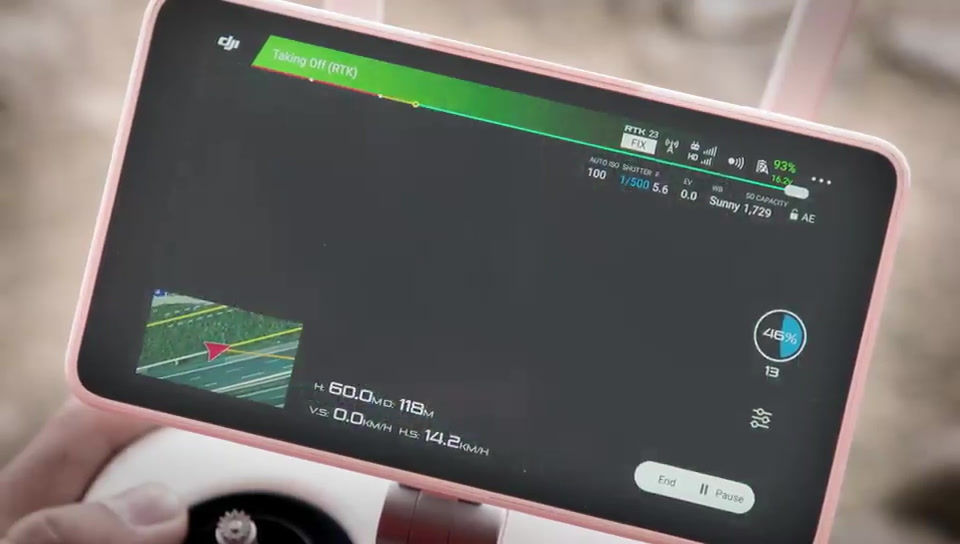

With a built-in flight planning app (GS RTK) and an easy method to collect RTK data (RTK Network or D-RTK 2 Mobile Station), pilots have a full solution for any surveying, mapping or inspection workflow – right out of the box.
Technical Specifications
Specifications
Takeoff Weight
1391 g
Diagonal Distance
350 mm
Max Service Ceiling Above Sea Level
19685 ft (6000 m)
Max Ascent Speed
6 m/s (automatic flight); 5 m/s (manual control)
Max Descent Speed
3 m/s
Max Speed
31 mph (50 kph)(P-mode)
36 mph (58 kph)(A-mode)Max Flight Time
Approx. 30 minutes
Operating Temperature Range
32° to 104° F (0° to 40℃)
Operating Frequency
2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (United States, China)Transmission Power (EIRP)
2.4 GHz
CE (Europe) / MIC (Japan) / KCC (Korea) ：< 20 dBm
5.8 GHz
SRRC（China） / FCC（United States）/NCC(Taiwan,China)：< 26 dBmHover Accuracy Range
RTK enabled and functioning properly：
Vertical：±0.1 m；Horizontal：±0.1 m
RTK disabled
Vertical：±0.1 m（with vision positioning ）；
±0.5 m（with GNSS positioning）
Horizontal：±0.3 m（with vision positioning）;
±1.5 m（with GNSS positioning）Image Position Offset
The position of the camera center is relative to the phase center of the onboard D-RTK antenna under the aircraft body's axis:(36, 0, and 192 mm) already applied to the image coordinates in Exif data. The positive x, y, and z axes of the aircraft body point to the forward, rightward, and downward of the aircraft, respectively.
Sensor
1" CMOS; Effective pixels: 20 M
Lens
FOV 84°；8.8 mm / 24 mm(35 mm format equivalent:24 mm)；
f/2.8 - f/11, auto focus at 1 m - ∞ISO Range
Video:100-3200(Auto)
100-6400(Manual)；
Photo:100-3200(Auto)
100-12800(Manual)Mechanical Shutter Speed
8 - 1/2000 s
Electronic Shutter Speed
8 - 1/8000 s
Max Image Size
4864×3648（4:3）；
5472×3648（3:2）Video Recording Modes
H.264，4K：3840×2160 30p
Photo Format
JPEG
Video Format
MOV
Supported File Systems
FAT32（≤ 32 GB）；
exFAT（> 32 GB）Supported SD Cards
MicroSD, Max Capacity: 128 GB. Class 10 or UHS-1 rating required Write speed≥15 MB/s
Operating Temperature Range
32° to 104° F （0° to 40℃）
Stabilization
3-axis (tilt, roll, yaw)
Pitch
-90° to +30°
Max Controllable Angular Speed
90°/s
Angular Vibration Range
±0.02°
Obstacle Sensing Range
0.6-23 ft(0.2 - 7 m)
FOV
70°(Horizontal)
±10°(Vertical)Measuring Frequency
10 Hz
Operating Environment
Surface with diffuse reflection material, and reflectivity＞ 8%（such as wall,trees, humans, etc.)
