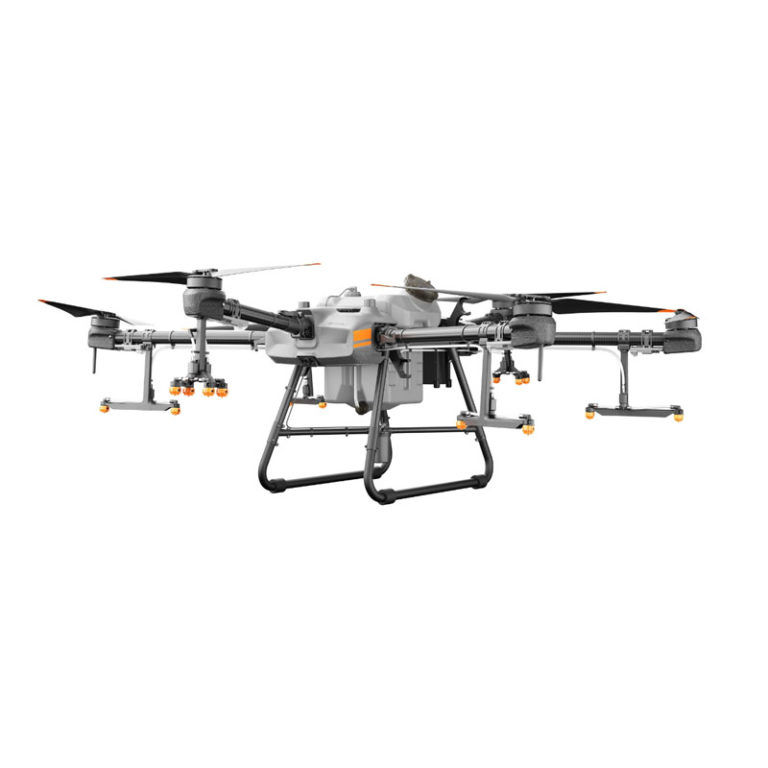

DJI Agras T10 (Agricultural Drone) DJI Agras T30(Agricultural Drone)
The Agras T30 crop spraying drone has the largest spray tank of all of the Agras drones, with as 30L operation tank. It also benefits from a 30kg spreading tank. This huge capacity increases operational efficiency.The Agras T30 benefits from the latest advances in drone technology, including IP67 rated waterproofing and fully self-directed, high precision work through RTK positioning and the Zhihui agricultural cloud platform.
Monitor autonomous and manual flights with dual front and back FPV cameras, along with a spherical radar sensing system to maximise safety during complex operations.The Agras T30 farming drone can also be equipped with the Agras T10 spreading system 3.0, allowing the drone to spread and spray solid matter such as seeds and mulch.
Technical Specifications
Specification
Value
Hourly work efficiency
40 acres
High-precision radar
√ Spherical Omnidirectional Radar System
Remote control planning accuracy
√ (RTK/GNSS)
Pipe air exhaust
√ One button Air Discharge
3D operation planning by the AI smart engine
√
High-precision flowmeter
√ (Dual-channel electromagnetic flowmeter with an error of ±2%)
Level gauge
Continuous level gauge (with real-time pesticide load detection and intelligent supply-point prediction)
Maximum spray flow
7.2L/min (with the XR11001 nozzle)
8L/min (with the XR110015 optional nozzle)
Pesticide tank installation method
Fixed pesticide tank
Battery installation method
Removable batteries
Single remote control for multiple drones
√ (Single remote control for up to three drones)
D-RTK technology
√
Top-view radar module
√
Flight laser function
√
Intelligent endurance/return function
√
Intelligent supply-point prediction
√
Front-view FPV
√
Rear-view FPV
√
Coordinated turning function
√
Branch targeting technology
√
Total weight (without batteries)
26.4 kg
Maximum take-off weight
76.5 kg (near sea level)
Maximum thrust-to-weight ratio
1.70 @ takeoff weight of 66.5 kg
Hovering precision (with good GNSS signal)
With D-RTK enabled:
±10 cm (horizontal) and ±10 cm (vertical)
With D-RTK disabled:
±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1m)
RTK and GNSS frequency bands
RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
GNSS: GPS L1, GLONASS F1, and Galileo E1
Maximum power consumption
11,000 W
Hovering power consumption
10,000 W (@ takeoff weight of 66.5 kg)
Hovering endurance
20.5min (@29,000 mAh & takeoff weight of 36.5 kg)
7.8min (@29,000 mAh & takeoff weight of 66.5 kg)
Maximum pitch angle
15°
Maximum operating flight speed
7 m/s
Maximum level speed
10 m/s (with good GNSS signal)
Maximum tolerable wind speed
8 m/s
Maximum flight altitude
4,500m
*Reduce the pesticide load by 12% for each increase of 1,000 meters in altitude.
Recommended operating ambient humidity
< 93%
Recommended operating ambient temperature
0℃ to 45℃
Operation tank volume
30L at full load
Operating load
30 kg at full load
Battery Model
BAX501-29,000mAh-51.8V
Weight
Approximately 10.1 kg
Discharge rate
11.5C
Water-resistance rating
IP54 with board-level potting protection
Capacity
29,000 mAh
Voltage
51.8 V
