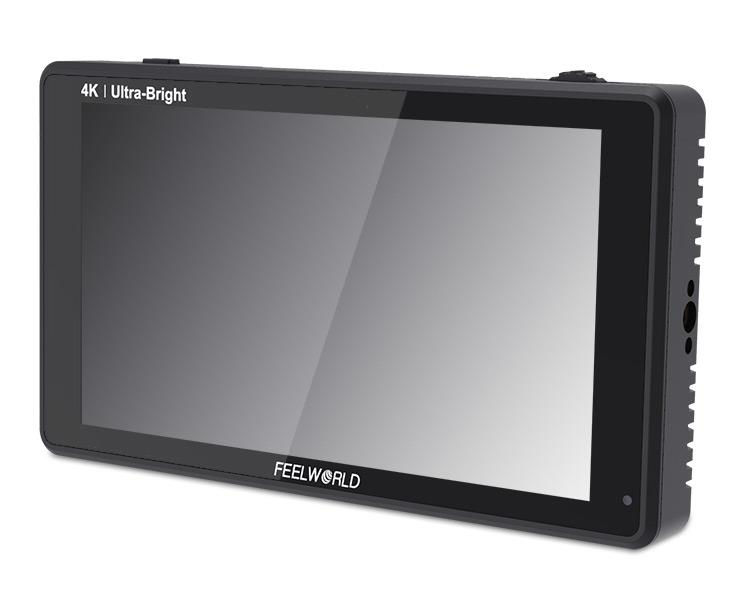

FEELWORLD LUT6 6" 2600nits HDR/3D LUT Touchscreen DSLR Camera Field Monitor
The LUT6 equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the left side and SD card slot on the bottom, and space for a NP-F battery on the back. The outer frame features standard 1/4" mount points on the bottom and right for attaching it to camera and rig. This design detail makes the LUT6 easy to attach to a camera and easy to share with a team member or client on set.
Technical Specifications
DISPLAY SPECIFICATIONS
Model
LUT6
Screen Size
6" IPS
Resolution
1920x1080 pixels
Pixel Pitch
0.069 (L) x 0.069 (W) (mm)
Aspect Ratio
16:9
Brightness
2600cd/m²
Contrast Ratio
1000:1
Backlight
LED
Viewing Angle
80°/80°(L/R) 80°/80°(U/D)
INPUT/OUTPUT
Input
1 X HDMI
Output
1 X HDMI, 1 X DC (Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor)
Audio
3.5mm Stereo Headphone
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840x2160p (30/29.97/25/24/23.98)
4096×2160p (30/29.97/25/24/23.98)GENERAL
Input Voltage
DC7～24V
Power Consumption
≤16W
Power Connector
DC
Working Temperature
-20°C~50°C
Storage Temperature
-30°C~60°C
Install Way
¼-20 thread points (Right, Bottom)
Unit Size
148Lx93Hx20D (mm)
Battery Plate
F970 Battery Plate
Unit Weight
300g
Battery Plate
Dual F970 Battery Plate
COMPATABILITY
Compatibility Battery
Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series. Because the FEELWORLD LUT7S monitor is the ultra bright, we recommend use Sony F970 battery, two F970 batteries can use 4-5 hours.
