Excluding Tax |

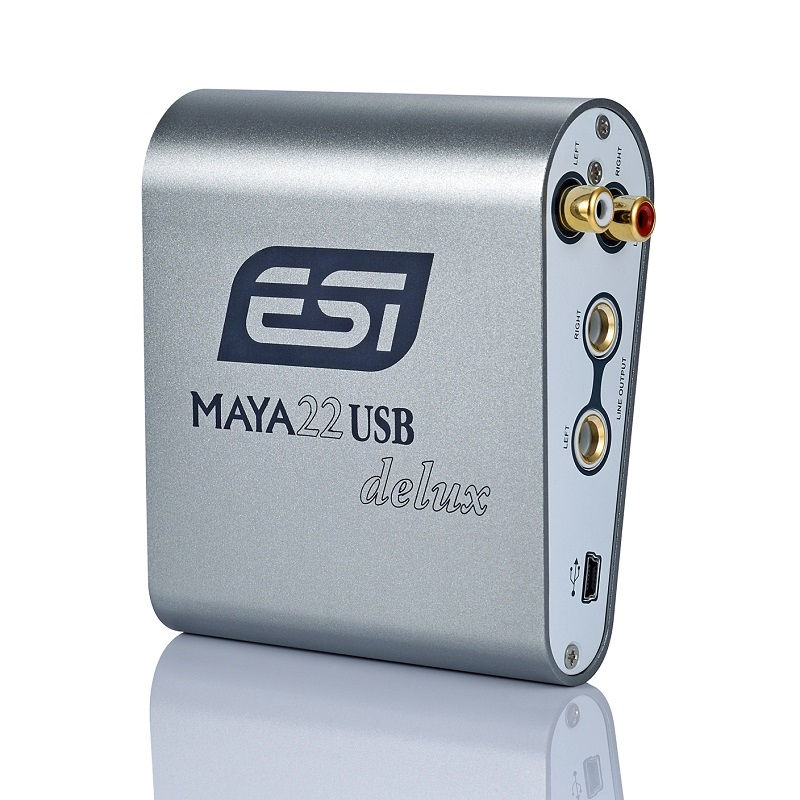

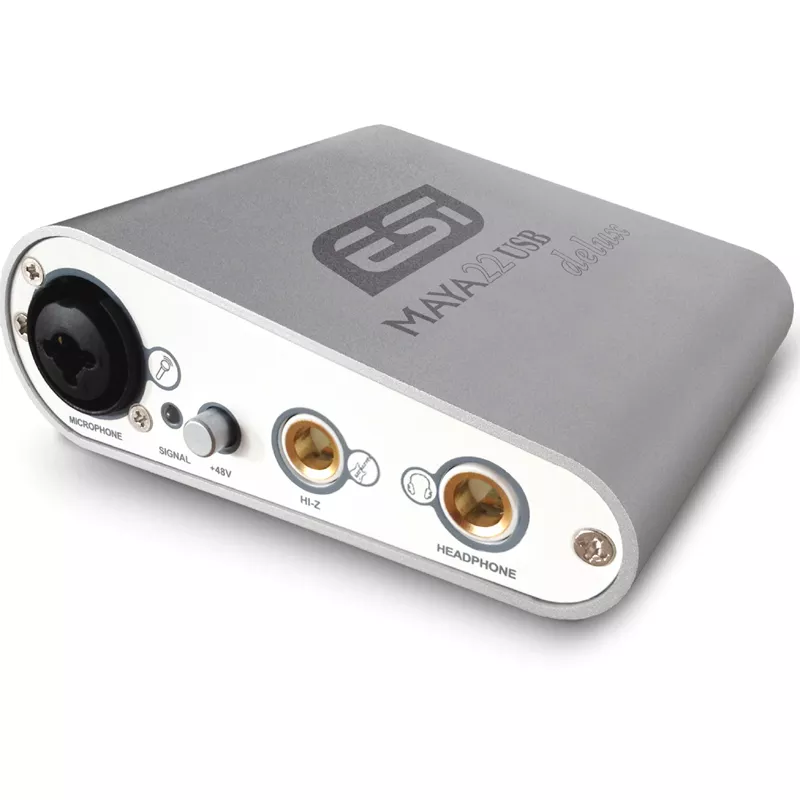

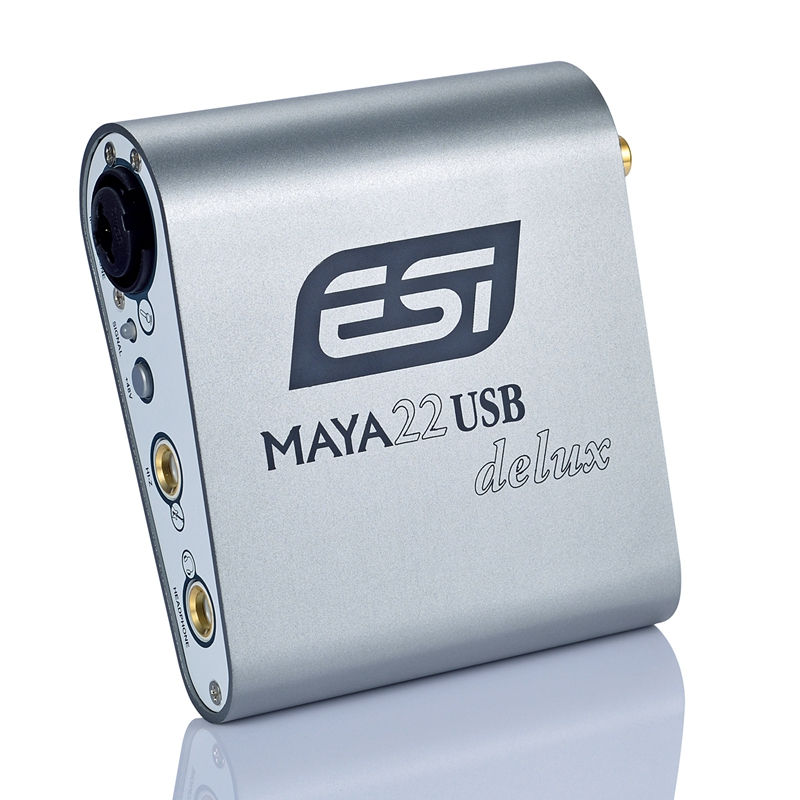

The MAYA22 USB Flexible High-Performance, 24-Bit USB Audio Interface from ESI features 2 analog-input and 2 analog-output channels with RCA connectors, a mic preamplifier with XLR input and support for +48V phantom power, a Hi-Z input for guitars, a headphone output, and TRS line outputs. The interface can be used to record microphone and guitar signals simultaneously, process the incoming signals with a Windows or Mac notebook or desktop in real time, and then listen to the mix directly via headphones or studio monitor speakers.


This portable MAYA22 USB device offers total flexibility as an external and fully bus-powered device with professional 24-bit audio quality. All these features are provided with a professional low-latency driver and support for WDM, ASIO 2.0, and CoreAudio. The MAYA22 USB portable device is an important and useful addition to any studio, wherever that may be.



  • XLR Input with +48V Phantom Power
  • 1/4" Hi-Z Instrument Input for Guitar
  • 2 x RCA Inputs, 2 x RCA Outputs
  • 1/4" TRS Line Outputs
  • 1/4" Headphone Output
  • 24-Bit / 96 kHz Sample Rate
  • Compatible with Mac or Windows Computers
  • Technical Specifications

    Form Factor Tabletop
    Channels of I/O 2 Input / 2 Output
    Max Sample Rate/Resolution 96 kHz / 24-Bit
    Number of Mic Preamps 1

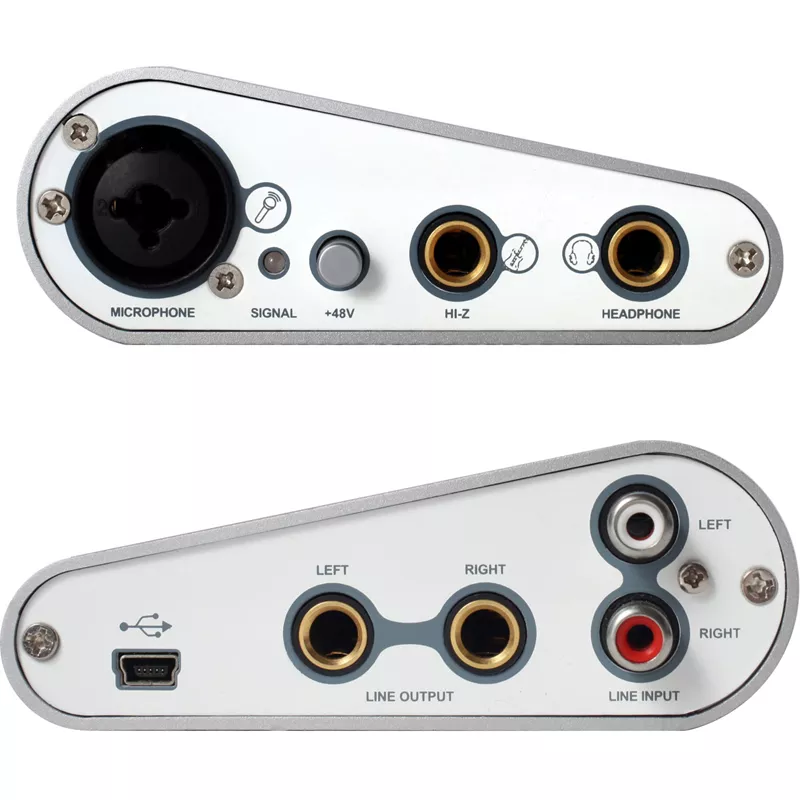

    Analog Audio I/O 1 x Combo XLR-1/4" TRS Balanced Mic Input
    1 x 1/4" TS Unbalanced Hi-Z Input
    1 x Stereo RCA Unbalanced Line Input
    1 x 1/4" TRS Unbalanced Headphone Output
    2 x 1/4" TRS Balanced Line Output
    Digital Audio I/O None
    Host Connection / USB Mini-USB (USB 2.0)
    MIDI I/O None
    Dynamic Range A/D Converters:
    102 dBA
    D/A Converters:
    108 dBA
    OS Compatibility Windows XP
    Windows Vista
    Windows 7
    Windows 8.1
    macOS 10.4 or Later
    Power Requirements USB Bus Power
    Dimensions 4 x 3.75 x 1.5" / 10.2 x 9.5 x 3.8 cm
    Weight 0.5 lb / 0.2 kg
  • Package Content

    For Package Contents, please send email to:

  • Delivery and Warranty Information

    Delivery Times Vary Depending On The Region And The Product Being Shipped.  Times Could Range From 7-30 Days From The Date Your Product was Shipped.  In Some Limited Cases, Products May arrive in 2-3days in Europe & North America.

    If Faster Delivery Times Are Available, Diamond And Platinum Members Will Be Contacted For Additional Shipping Options.

    For EU Citizens, VAT & Taxes will be included where applicable; for all other customers, taxes are included where applicable tax laws apply to your country.


    In remote locations or hard to deliver regions, products can take up to 30-40 days, longer in exceptional cases, where shipping back-ups due to man-made, weather, or natural disasters exist or have occurred; or, during holidays due to high order volumes shipping times could exceed p40 days in these regions (e.g. South America, Africa).


    If an order is processed to an area, region or country that we cannot deliver, an immediate refund will be given along with an email indicating our inability to process your order.


    If you have questions regarding delivery to your location:

                        Please send an email to

    **Indicate in the subject line (Delivery Region Confirmation Query)**

  • Return Information


    To return your product, CLICK the link on the bottom of the home page for the Nomad X CrossBorderStore  and you should receive an email confirmation within 24 hours indicating the return address and receipt of your return application: If this email is not received,

    Please send an email to:

    ** Indicate in the subject line (Product Return) **

    You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable.

    If you receive a refund, it will be for the item cost on your invoice unless membership benefits apply.
