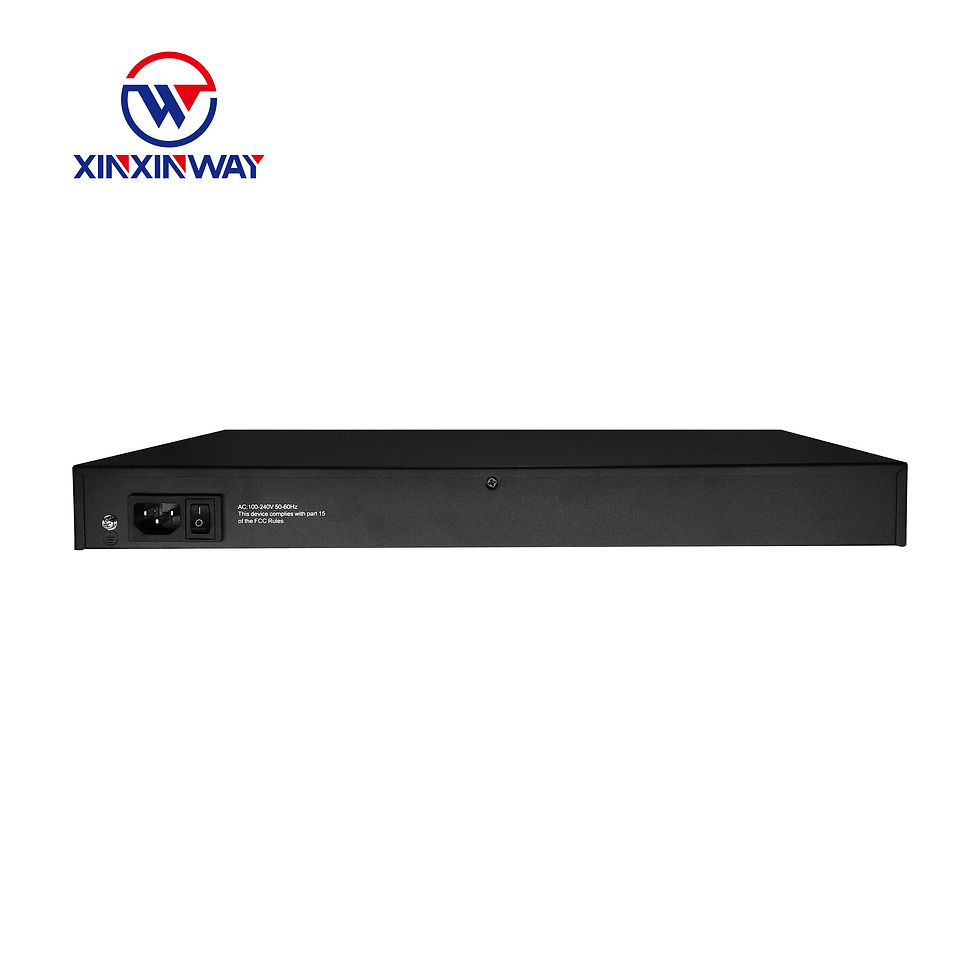

2 gigabit uplink 16 port poe switch 1000mbps of cctv security monitoring

2 gigabit uplink 16 port poe switch 1000mbps of cctv security monitoring

SKU: 2045740653054
$400.00Price
Excluding Tax |
  • Products Status:Stock
  • Ports:18
  • Transmission Rate:10/100/1000Mbps
  • Function:POE, VLAN Support
  • Communication Mode:Full-Duplex & Half-Duplex
  • Certification:FCC, ce, RoHS
  • Switch Capacity:56G
  • Brand Name:XINXINWAY
  • Model Number:W7700P-16G-2S
  • Place of Origin:Sichuan, China
  • Product Name:16+2 Full Gigabit PoE Switch
  • PoE Ports:16*10/100/1000Base-TX  PoE port
  • Uplink Ports:2*1000M SFP
  • Warranty:1 Year
  • Condition:100% Original Brand
  • Applications:Support PoE IP Cameras
  • Type:Original
  • PoE Standard:IEEE802.3af/at
  • Bandwidth:56Gbps
  • Transmission Distance:250m
  • Selling Units:Single item
  • Single package size: 51.5X37.5X9.5 cm
  • Single gross weight:3.900 kg
  • Package Type:Packaging Details:one piece per box
  • Lead Time:Quantity(Pieces)1 - 500501 - 20002001 - 5000>5000Est. Time(days)71520To be negotiated


Product Paramenters


Basic Parameters

Model name
                                    2 gigabit uplink 16 port poe switch 1000mbps of cctv security monitoring
Fixed Port
                                                      16*10/100/1000Base-TX PoE port（Data/Power）
                                                      2*1000M SFP
Bandwidth
56G
Packet Forwarding
40.32Mpps
Power Input
                                                     Built-in power AC：100～240V 50-60Hz 1A
Watt
300W
Power Pin
Default 1/2(+),3/6(-)  Optional order 4/5(+),7/8(-)
Product Size
515mm*375mm*95mm(L*W*H)

Operating Modes

N
Standard Normal
all ports communicate freely and adapts to common transmission environment.
V
Port isolation
16 fast ethernet ports isolate from each other and suitable for using environment connected to wireless AP to suppress network storm and promote network performance.
S
Ultral-far mode
Ultral-far mode : designed specially for long-distance application environment up to 250 meter.


2 gigabit uplink 16 port poe switch 1000mbps of cctv security monitoring
